Forestry semi-trailer PPSM39 without floor

The PPSM39 timber semi-trailer is the company’s own product, developed in accordance with the wishes and needs of customers. It is completely designed and manufactured in the company’s facility in the Industrial Zone in Kukuljanovo. It is delivered with all necessary certificates for registration, a warranty, and guaranteed service and spare parts during exploitation.

The trailer is extremely lightweight due to the use of aluminum parts and the special composite material MonoPan used to protect the chassis. It is intended primarily for the transport of logs.

TECHNICAL SPECIFICATIONS:

  • – Gross weight of the composition: 39,000 kg
  • – Trailer weight: 5160 kg
  • – Payload: 30840 kg
  • – Axles: 3 x 9000 kg, 1 lifting, 2 and 3 fixed
  • – Tires: 6+1 385/65 R 22.5
  • – Brakes: disc
  • – Length of loading space: 13600 mm
  • – Undercarriage protection: waterproof plywood
  • – Boards: 6 pairs of ExTe 144 bunks
  • – Front wall: aluminum or steel

SEMI-TRAILER EQUIPMENT:

  • Šumarska-poluprikolica-prednji-aluminijski-zid

    Prednji aluminijski zid

  • Šumarska-poluprikolica-exte-štice

    ExTe 144 štice

  • Šumarska-poluprikolica-podnica-šperploča

    Vodootporna šperploča

  • Šumarska-poluprikolica-3-osovina-x-9t

    3 osovine x 9t

  • Šumarska-poluprikolica-zračni-ovjes

    Zračni ovjes

  • Šumarska-poluprikolica-WABCO-instalacija-s-vagom

    WABCO instalacija s vagom

  • Šumarska-poluprikolica-potporne-noge

    Potporne noge

  • Šumarska-poluprikolica-kutija-za-alat

    Kutija za alat

  • Šumarska-poluprikolica-vezivanje-tereta

    Uške za fiksiranje tereta

SEMI-TRAILER DRAWING:

Forestry semi-trailer design


Timber semi-trailer PPSM39

The PPSM39 timber semi-trailer with a floor is the company’s own product, developed in accordance with the wishes and needs of customers. It is completely designed and manufactured in the company’s facility in the Industrial Zone in Kukuljanovo. It is delivered with all necessary certificates for registration, a warranty, and guaranteed service and spare parts during exploitation.

The semi-trailer is designed for the transport of logs, timber and all types of palletized goods. The first and third axles are lifting. Axles from renowned manufacturers such as BPW or SAF are used in the production. The platform is equipped with Exte bunks that can be transported folded in front of the front wall in the case of transporting goods that require the entire width of the loading platform.



TECHNICAL SPECIFICATION:

  • Gross weight of the composition: 39000 kg
  • Trailer weight: 6300 kg
  • Payload: 29700 kg
  • Axles: 3 x 9000 kg, 1st and 3rd lifting, 2nd fixed
  • Tires: 6+1 385/65 R 22.5
  • Brakes: disc
  • Length of loading space: 13450 mm
  • Undercarriage protection: Waterproof plywood
  • Boards: 6 pairs of ExTe 144 boards
  • Front wall: aluminum or steel

EQUIPMENT:

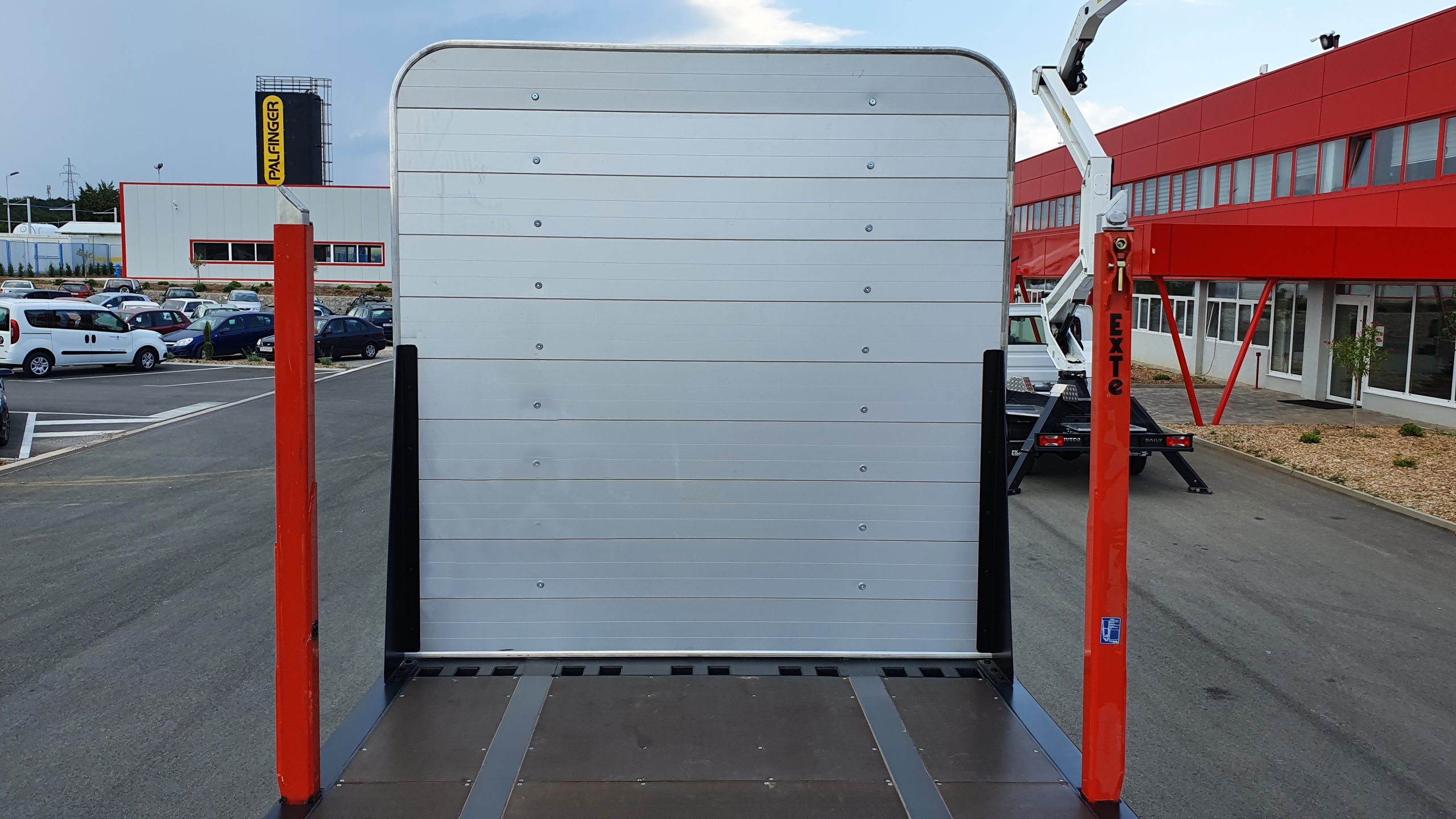

  • sumarska-poluprikolica-prednji-zid-aluminijski

    Prednji aluminijski zid

  • ExTe 144 štice

  • Šumarska-poluprikolica-podnica-šperploča

    Podnica od šperploče

  • Šumarska-poluprikolica-podizne-osovine

    3 osovine x 9t; 1. i 3. podizna

  • Šumarska-poluprikolica-zračni-ovjes

    Zračni ovjes

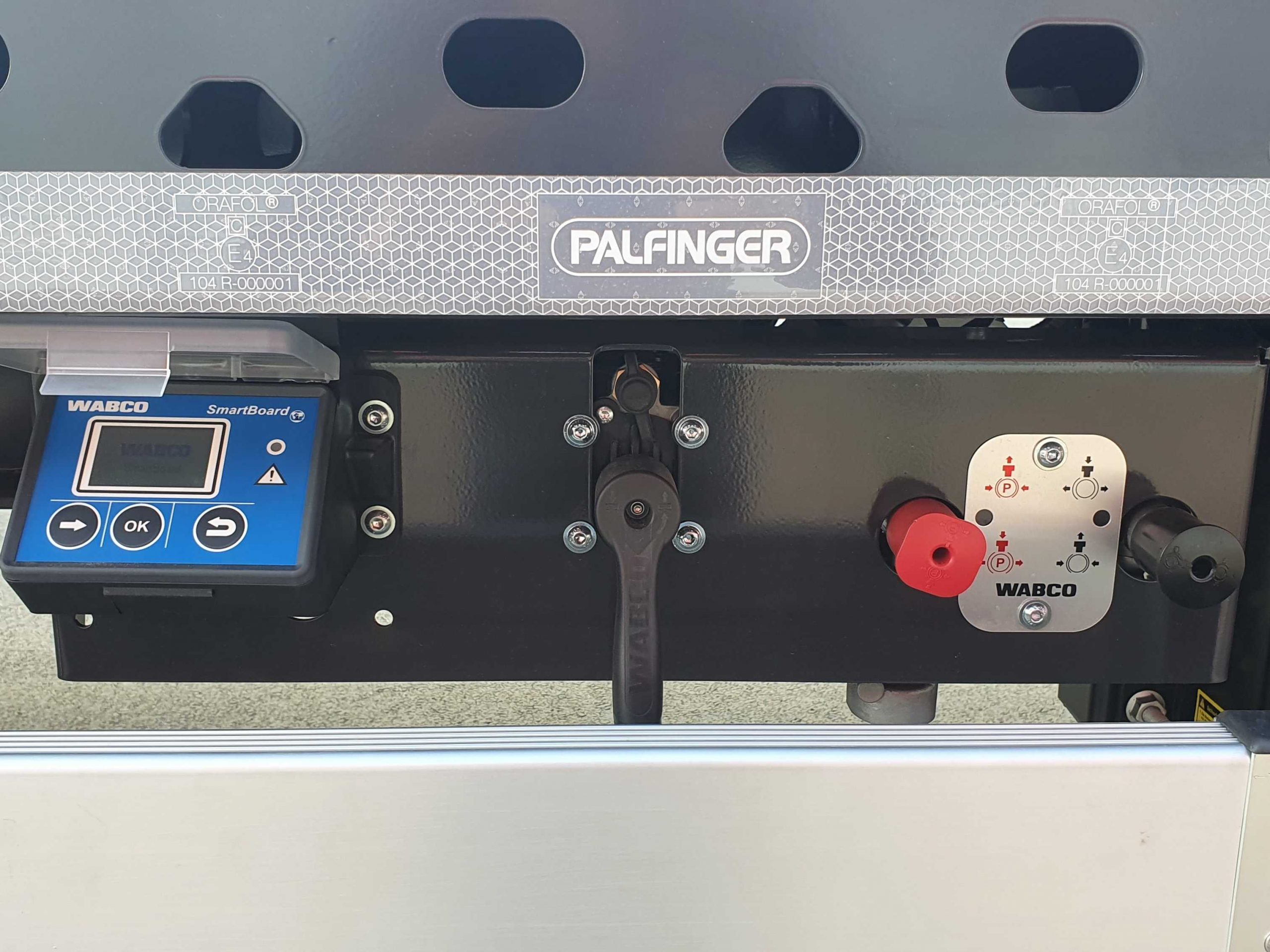

  • Šumarska-poluprikolica-wabco

    WABCO instalacija s vagom

  • Šumarska-poluprikolica-priveznice

    Rupe za priveznice

  • Šumarska-poluprikolica-kutija-za-alat

    Kutija za alat

  • šumarska-poluprikolica-nacrt

    Rupe za odlaganje štica

SEMI-TRAILER DRAWING:forestry-semitrailer-draft
