rear half-pipe tippers
IN Construction
Investor Name:
Published Date:
1. January 1970.
Location:
London
Value:
Architecture:
About Project

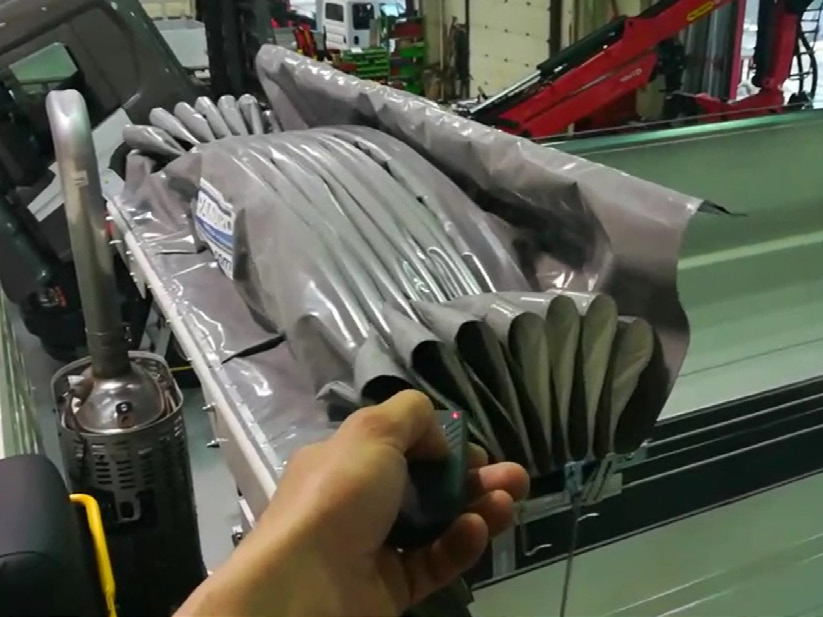

We offer all types of tipper truck superstructures depending on the needs of our customers. Half-pipe tipper truck superstructures are produced mainly for heavy construction transport. We offer several models of rear tipper trucks whose construction materials and design solutions are suitable for heavy load transport. The auxiliary chassis and tipper truck floor are made of high-quality fine-grained steel, while the fixed sides are made of steel, and the thickness of the sides depends on the model and purpose. Half-pipe tipper truck superstructures can be delivered with an electrically or manually rolled tarpaulin.
PK tipper truck upgrades are delivered with all necessary registration certificates. For the entire duration of exploitation, spare parts and service are provided in authorized service locations. Below we present all available half-pipe tipper models. We are ready to respond to all additional requirements with the highest quality construction and production solutions.
HALF-PIPE REAR DUMPER MODELS:
SPECIFICATIONS
BASIC CHARACTERISTICS OF THE TIPPER:
– tipper designed for four-axle vehicles with a gross weight of 26 t to 33 t
– tipper length from 4500 mm to 5000 mm
– tipper volume 11 m³ or 17 m³
– subframe made of high-quality fine-grained steel
– steel floor and all sides made of high-quality HB 400 steel sheet
– swinging rear side opening (automatic mechanical opening of the lower edge)
– CE version.
OPTIONS:
BASIC CHARACTERISTICS OF THE TIPPER:
– tipper designed for four-axle vehicles with a gross weight of 26 t to 33 t
– tipper length from 4500 mm to 5000 mm
– tipper volume 11 m³ or 17 m³
– subframe made of high-quality fine-grained steel
– steel floor and all sides made of high-quality HB 400 steel sheet
– swinging rear side opening (automatic mechanical opening of the lower edge)
– CE version.
OPTIONS:
BASIC CHARACTERISTICS OF THE TIPPER:
– tipper designed for four-axle vehicles with a gross weight of 32 t to 40 t
– tipper length from 5300 mm to 5800 mm
– tipper volume 18 m³ to 20 m³
– subframe made of high-quality fine-grained steel
– steel floor and all sides made of high-quality HB 400 steel sheet
– swinging rear side opening (automatic mechanical opening of the lower edge)
– CE version.
OPTIONS:
BASIC CHARACTERISTICS OF THE TIPPER:
– tipper designed for four-axle vehicles with a gross weight of 32 t to 40 t
– tipper length from 5300 mm to 5800 mm
– tipper volume 18 m³ to 20 m³
– subframe made of high-quality fine-grained steel
– steel floor and all sides made of high-quality HB 400 steel sheet
– swinging rear side opening (automatic mechanical opening of the lower edge)
– CE version.
OPTIONS:
BASIC CHARACTERISTICS OF THE TIPPER:
– tipper planned for five-axle vehicles with a gross weight of 50 t
– length of the tipper 7000 mm
– tipper volume 25 m³
– subframe made of high-quality fine-grained steel
– steel floor and all sides made of high-quality HB 400 steel sheet
– swinging rear side opening (automatic mechanical opening of the lower edge)
– CE version.
OPTIONS:
BASIC CHARACTERISTICS OF THE TIPPER:
– tipper designed for four-axle vehicles with a gross weight of 26 t to 33 t
– tipper length of 5300 mm, 5500 mm or 5800 mm with a side height of 1500 mm
– tipper volume 17 m³ or 18 m³
– upon request for HP 220 it is possible to deliver a box with a volume of 22 m³ or 26 m³ (length is 6000 mm or 7000 mm with a side height of 1600 mm)
– subframe made of high-quality fine-grained steel
– steel floor and all sides made of high-quality HB 400 steel sheet
– swinging rear side opening (automatic mechanical opening of the lower edge)
– CE version.
OPTIONS:
BASIC CHARACTERISTICS OF THE TIPPER:
– tipper designed for four-axle vehicles with a gross weight of 26 t to 33 t
– tipper length of 5300 mm, 5500 mm or 5800 mm with a side height of 1500 mm
– tipper volume 17 m³ or 18 m³
– upon request for HP 220 it is possible to deliver a box with a volume of 22 m³ or 26 m³ (length is 6000 mm or 7000 mm with a side height of 1600 mm)
– subframe made of high-quality fine-grained steel
– steel floor and all sides made of high-quality HB 400 steel sheet
– swinging rear side opening (automatic mechanical opening of the lower edge)
– CE version.
