Low-loader trailers
Investor Name:
Published Date:
Location:
Value:
Architecture:
About Project
TRAILER FOR TRANSPORTING WORKING MACHINERY PRS360
The PRS360 trailer is a proprietary product of the PK company, developed in accordance with the wishes and needs of customers, with all the necessary certificates for registration. The trailer is completely designed and manufactured in the company’s facility in the Industrial Zone in Kukuljanovo.
The three-axle low-loader trailer is intended for the transport of working machines. At the rear of the trailer there are folding loading ramps, 700 mm wide and 4000 mm long. The ramps are foldable and hydraulically controlled, and have the possibility of horizontal movement to adjust the width.
TECHNICAL SPECIFICATIONS
- – Gross weight: 36000 kg
- – Trailer weight: ≈6400 kg
- – Payload: ≈29600 kg
- – Axles: 3 x 12000 kg
- – Tires: 12+1 245/70 R 17.5
- – Trailer length: 10723 mm
- – Length of loading space: 8400 mm
- – Width of loading area: 2540 mm
- – Loading area extension: 3000 mm
- – Brakes: drum
- – Suspension: air
- – Drawbar: A drawbar, length 1800 mm, diameter 40 mm
- – Ramp dimensions: 4000 x 700 mm (gap width adjustment: 600 mm to 1600 mm)
EQUIPMENT:
Mehanička hidraulična rampa
Stražnje stop svijetlo
Uške za vezivanje tereta
PVC blatobran (PVC)
GIGANT osovine 3x12t
Nosač za proširenje platforme
Kutija za alat (K)
Stražnji stabilizator
WABCO instalacija
DRAFT:

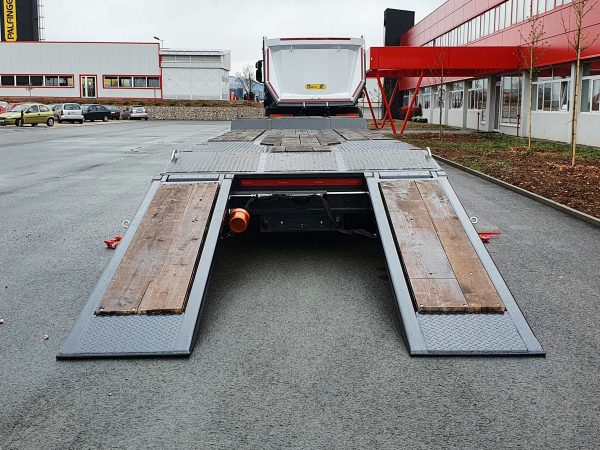

TRAILER FOR TRANSPORTING WORKING MACHINERY PRS480
The PRS480 trailer is a proprietary product of the PK company, developed in accordance with the wishes and needs of customers, with all the necessary certificates for registration. The trailer is completely designed and manufactured in the company’s facility in the Industrial Zone in Kukuljanovo.
The four-axle low-loader trailer is intended for the transport of working machinery. At the rear of the trailer are folding loading ramps, 700 mm wide and 4000 mm long. The ramps are foldable and hydraulically controlled, and have the ability to move horizontally to adjust the width.
TECHNICAL SPECIFICATIONS:
- – Gross weight: 45000 kg
- – Trailer weight: ≈8100 kg
- – Payload: ≈36900 kg
- – Axles: 4 x 12000 kg, 1st and 2nd fixed, 3rd automatic lifting, 4th self-managing
- – Tires: 16+1 245/70 R 17.5
- – Trailer length: 12850 mm
- – Dimensions of the loading space: 10700 mm x 2540 mm
- – Loading area extension: 3000 mm
- – Loading height: ≈730 mm
- – Brakes: drum
- – Suspension: air
- – Drawnbar: A shape, length 1800 mm, diameter 50 mm
- – Ramp dimensions: 4100 x 700 mm (hydraulic width adjustment: 600 mm to 1600 mm)
EQUIPMENT:
Hidraulične utovarne rampe
Hidraulično namještanje širine
Platforma prekrivena drvenim daskama
Prsteni za vezivanje tereta
Zračni ovjes
BPW osovine 4x12.000 kg
Instalacija za zrak; svijetlo; EBS
Kutija za alat
WABCO instalacija
DRAFT:
TRAILER FOR TRANSPORTING WORKING MACHINERY PRS600
The PRS600 trailer is a proprietary product of the PK company, developed in accordance with the wishes and needs of customers, with all the necessary certificates for registration. The trailer is completely designed and manufactured in the company’s facility in the Industrial Zone in Kukuljanovo.
More information coming soon…
TECHNICAL SPECIFICATIONS:
- – Gross weight: 55000 kg
- – Trailer weight: ≈9240 kg
- – Payload: ≈45760 kg
- – Axles: 5 x 11000 kg, 1st and 2nd fixed, 3rd automatic lifting, 4th fixed, 5th self-managing
- – Tires: 20+1 245/70 R 17.5
- – Trailer length: 11960 mm
- – Dimensions of the loading space: 9820 mm x 2540 mm
- – Loading area extension: 3000 mm
- – Loading height: ≈950 mm
- – Brakes: drum
- – Suspension: air
- – Drawnbar: A shape, length 1800 mm, diameter 50 mm
- – Ramp dimensions: 4000 mm x 700 mm (hydraulic width adjustment: 530 mm to 1130 mm)
